Mining Machinery

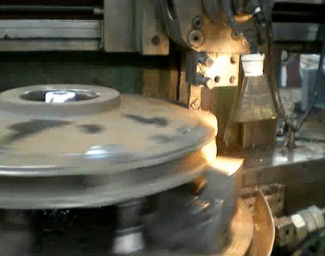

Workpiece:Slurry Pump

Material: White Cast Iron

Hardness: HRC56

Inserts: SNGN150712

Grade: WBN25

Cutting Type: Dry Cutting

Cutting parameters:

Vc=50m/min, ap-2.5mm, f=0.3mm/r

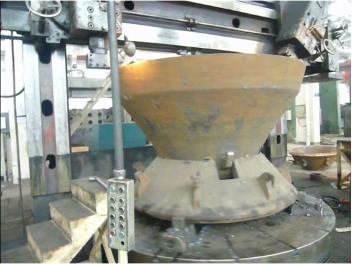

Workpiece: Rolling Mortar Wall (Inner surface)

Material: High-Mn steel

Hardness: HB240

Inserts: SNGN150720 S10020

Grade: WBN50

Cuuting Type: Dry Cutting

Cutting parameters:

Vc=60m/min, ap=3mm, f=0.4mm/r
