Roll Industry

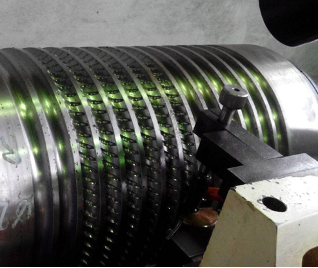

Workpiece: Roll

Material: Carbide Tungsten

Hardness: HSD90

Inserts: RCGX190700

Grade: WBN25

Cuuting Type: Dry Cutting

Cutting parameters

Vc=70m/min, ap=10mm, f=2mm/r

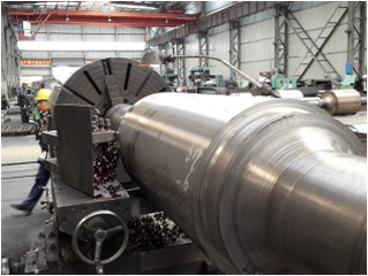

Workpiece: Roll

Material: High nickel chromium cast iron

Hardness: HSD78

Inserts: RNMN201000

Grade: WBN25

Cutting Type: Dry Cutting

Cutting parameters:

Vc=55m/min ap=2mm f=0.2mm/r
