Wind Power Generation

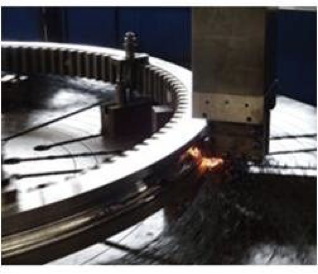

Workpiece: Large Gear

Material: 42CrMo

Hardness: HRC50~60

Inserts: SNGN150712

Grade: WBN50

Cutting Type: Dry Cutting

Cutting parameter:

Vc=100m/min, ap=4mm, f=0.7mm

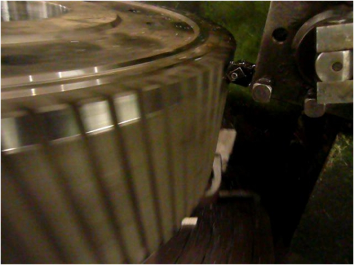

Workpiece: Slewing Bearing

Material: 42CrMo

Hardness: HRC50~60

Insert: RCGX090700

Grade: WBN50

Cuuting Type: Dry Cutting

Cutting parameters:

Vc=90m/min, ap=0.3mm, f=0.3mm/r
