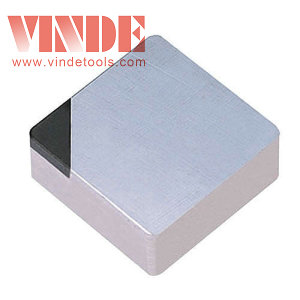

SNGN090304 SNGN090308 SNGN120404 SNGN120408 SNGN120412
Features:
1. High abrasive resistance, high processing precision, good thermal conductivity and long service life.
2. High speed machining with improved resistance to wear.
3. High removal rates without metalergical damage.
4. PCD Inserts can improve surface finishes.
5. PCD inserts can be used repeatedly, which helps to lower your processing cost.
Application :
PCD Inserts can be used in a wide range of machining operations, such as grooving, turning, milling, boring and facing .
PCD Inserts are widely used in many fields ,including aviation, the car industry, energy equipment, and the wood and stone industry. Not only for aluminum and aluminum alloys products, they also can be used to cut and process other materials such as non-ferrous metal, tungsten carbide, ceramic, non-metal and composite materials.
SNGN | Type | Dimension (mm) | ||||
ISO | ANSI | ￠d | s | R | H | |
| SNGN090304 | SNGN321 | 9.525 | 3.175 | 0.4 | - |
SNGN090308 | SNGN322 | 9.525 | 3.175 | 0.8 | - | |
SNGN090312 | SNGN323 | 9.525 | 3.175 | 1.2 | - | |
SNGN090316 | SNGN324 | 9.525 | 3.175 | 1.6 | - | |
SNGN120308 | SNGN422 | 12.7 | 3.175 | 0.8 | - | |
SNGN120312 | SNGN423 | 12.7 | 3.175 | 1.2 | - | |
SNGN120316 | SNGN424 | 12.7 | 3.175 | 1.6 | - | |
SNGN120402 | SNGN430.5 | 12.7 | 4.76 | 0.2 | - | |
SNGN120404 | SNGN431 | 12.7 | 4.76 | 0.4 | - | |
SNGN120408 | SNGN432 | 12.7 | 4.76 | 0.8 | - | |
SNGN120412 | SNGN433 | 12.7 | 4.76 | 1.2 | - | |
SNGN120416 | SNGN434 | 12.7 | 4.76 | 1.6 | - | |
