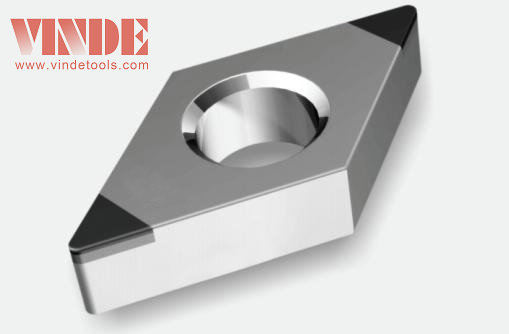

DCGW070202 DCGW070204 DCGW070208 DCGW11T304 DCGW11T308 DCGW150404 DCGW150408
Features:
1. High hardness and abrasive resistance.
2. High chemical resistance stability.
3. Excellent fracture resistance.
4. Replaces grinding with turning with work efficiency improved by 4 to 10 times.
5. Dry cutting without cutting fluid to avoid environmental pollutiion.
Applications:
CBN Inserts do not react chemically with iron and are very ideal for processing hard ferrous metals, such as hardened steels, grey cast iron.
CBN Inserts are mostly used to process break discs ,engine blocks, engine cylinder liners, break drumsticks, valve seats and guides, gears and mould etc.
DCGW | Type | Dimension (mm) | ||||
ISO | ANSI | ￠d | s | R | H | |
| DCGW070202 | DCGW21.50.5 | 6.35 | 2.38 | 0.2 | 2.8 |
DCGW070204 | DCGW21.51 | 6.35 | 2.38 | 0.4 | 2.8 | |
DCGW11T302 | DCGW32.5 | 9.525 | 3.97 | 0.2 | 4.4 | |
DCGW11T304 | DCGW32.51 | 9.525 | 3.97 | 0.4 | 4.4 | |
DCGW11T308 | DCGW32.52 | 9.525 | 3.97 | 0.8 | 4.4 | |
DCGW150404 | DCGW431 | 12.7 | 4.76 | 0.4 | 5.5 | |
DCGW150408 | DCGW432 | 12.7 | 4.76 | 0.8 | 5.5 | |
