VINDE PRECISION TOOLS CO., LTD

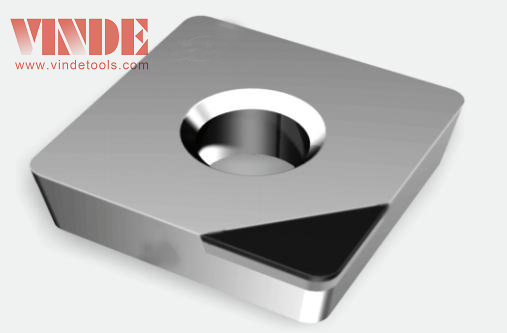

SPGW090304 SPGW090308 SPGW120304 SPGW120408
Features:
1. High hardness and abrasive resistance.
2. High chemical resistance stability.
3. Excellent fracture resistance.
4. Replaces grinding with turning with work efficiency improved by 4 to 10 times.
5. Dry cutting without cutting fluid to avoid environmental pollutiion.
Applications:
CBN Inserts do not react chemically with iron and are very ideal for processing hard ferrous metals, such as hardened steels, grey cast iron.
CBN Inserts are mostly used to process break discs ,engine blocks, engine cylinder liners, break drumsticks, valve seats and guides, gears and mould etc.
SPGW | Type | Dimension (mm) | ||||
ISO | ANSI | ￠d | s | R | H | |
| SPGW090304 | SPGW321 | 9.525 | 3.175 | 0.4 | 4.4 |
SPGW090308 | SPGW322 | 9.525 | 3.175 | 0.8 | 4.4 | |
SPGW09T304 | SPGW32.51 | 9.525 | 3.97 | 0.4 | 4.4 | |
SPGW09T308 | SPGW32.52 | 9.525 | 3.97 | 0.8 | 4.4 | |
SPGW120304 | SPGW421 | 12.7 | 3.175 | 0.4 | 5.5 | |
SPGW120308 | SPGW422 | 12.7 | 3.175 | 0.8 | 5.5 | |
SPGW120404 | SPGW431 | 12.7 | 4.76 | 0.4 | 5.5 | |
SPGW120408 | SPGW4308 | 12.7 | 4.76 | 0.8 | 5.5 | |
