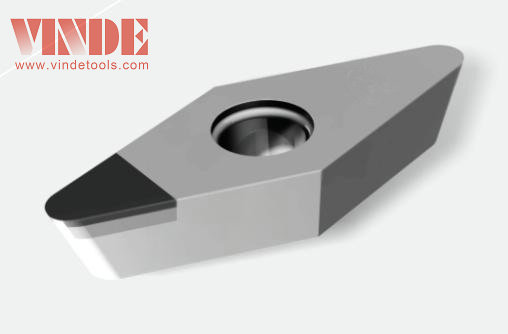

Tipped CBN Inserts - VBGW
Tipped CBN Inserts - VBGW

Tipped CBN Inserts - VBGW

Product ID : VBGW
Product Tags : Tipped CBN Inserts
Product Attributes :

VBGW110302 VBGW110304 VBGW110308 VBGW160404 VBGW160408 VBGW160412

Product Description

Features:
1. High hardness and abrasive resistance.
2. High chemical resistance stability.
3. Excellent fracture resistance.
4. Replaces grinding with turning with work efficiency improved by 4 to 10 times.
5. Dry cutting without cutting fluid to avoid environmental pollutiion.

Applications:
CBN Inserts do not react chemically with iron and are very ideal for processing hard ferrous metals, such as hardened steels, grey cast iron.
CBN Inserts are mostly used to process break discs ,engine blocks, engine cylinder liners, break drumsticks, valve seats and guides, gears and mould etc.

VBGW

Type

Dimension (mm)

ISO

ANSI

d

s

R

H


VBGW110302

VBGW220.5

6.35

3.175

0.2

2.8

VBGW110304

VBGW221

6.35

3.175

0.4

2.8

VBGW110308

VBGW222

6.35

3.175

0.8

2.8

VBGW160404

VBGW331

9.525

4.76

0.4

4.4

VBGW160408

VBGW332

9.525

4.76

0.8

4.4

VBGW160412

VBGW333

9.525

4.76

1.2

4.4
